Specifications
Model Number : PV-SC-001
Type: Bike parking and storage
Color:Yellow,Black,Green,Red,or Customized.
Style : both indoors and outside
Material : carbon steel
Loading: According to customer need
Size :195*23.2*75cm,200.55*23.2*75cm,or Customized.
Finish: hot-galvanized
Specifications
Model Number : PV-0081-01
Type: Bike parking and storage
Color:silver
Style : both indoors and outside
Material : carbon steel
Loading: According to customer need
Size :Height 1463mm, Depth 1114mm
Finish: hot-galvanized
Model Number : PV-0081-01
Type: Bike parking and storage
Color:Black
Style : both indoors and outside
Material : carbon steel
Loading: 2-10 bikes (According to customer need)
Size :Height 1463mm, Depth 1114mm
Finish: hot-galvanized
Model No.: PV-H1
Size: w605*D400*H330mm
Specification: Round tube:¢16*1.2mm
Finish: Power coated
Net Weight: 1.6 kgs
Packing size:6pcs/ctn
MOQ: 100pcs
Model Number : PV-0024-01
Material : carbon steel/stainless steel
Loading: according customer space size,we can design according the size
Size : W1977*D1130(depend on your parking space)*H2500mm
Finish: Powder coated ,hot-galvanized/electric polish
Packing size :2000*2000*2500mm(40 parking space )
Powder coated ,hot-galvanized/electric polish
Product number:PV-0046-01
Material:carbon steel
Specification:10.2*59*28CM or Customized.
MOQ:100PCS
Port:Shanghai
Trademark:PV
Model Number : PV-0081-01
Type: Outdoor Bike Parking Rack
Style : both indoors and outside
Material : carbon steel
Loading: 2-10 bikes (According to customer need)
Size :170.5*116*148CM
Finish: hot-galvanized
Model Number : PV-0055-01
Type: compact flat pack /slot
Color:black / silver /yellow/optional
Style :Outdoor/indoor
Material : carbon steel/ stainless steel
Capacity : park 6 bikes
Size : L1400*W1054*H840mm
Net weight :38KG
Finish: powder coating / hot galvanized /elctropolishing
Packing size :1490*860*160mm 1pcs/ctn
Product Name: Multi-Capacity Horizontal Two Tier Bike Parking Rack
Material: Carbon Steel
Finish: Powder coated
Post: 80mm * 80mm thickness: 3mm
Steel plate: thickness: 2mm
Dimension: 1325*1890*1830mm
Weight: 370 kg/set
Model: PV-0067-01
Material: stainless steel 304
Pipe: 50 mm* 2.5 mm
Size: 900*700 mm(L*W)
Surface treatment: polishing
When planning bike parking solutions for public spaces, it's essential to consider accessibility for everyone, including individuals with disabilities. ADA-compliant bike racks are designed with this goal in mind, ensuring that cyclists of all abilities can park, secure, and retrieve their bikes with ease. Let’s explore the benefits of these accessible designs, the key features of ADA-compliant bike racks, and how they contribute to an inclusive environment.
The Americans with Disabilities Act (ADA) establishes guidelines to make public spaces accessible to people with disabilities. When it comes to bike parking, ADA compliance means racks must be easy to use and navigate for cyclists with limited mobility or specialized equipment, such as adapted bikes or handcycles. ADA-compliant bike racks make spaces welcoming to everyone, regardless of their physical capabilities.
ADA-compliant racks are designed with height, spacing, and ease of use in mind. They allow for users with adapted cycles to access bike parking areas without encountering obstacles or overcrowded layouts. Features like lower height racks or angled designs also make it easier for those with limited strength or dexterity to secure their bike.
For public spaces, government buildings, or commercial areas, following ADA standards can help avoid legal issues and fines. Compliance also demonstrates a commitment to inclusivity and serves as a positive reflection on the brand, organization, or municipality providing the bike parking facilities.
ADA-compliant racks prioritize not only accessibility but also safety and convenience. For example, racks may be spaced farther apart to prevent bikes from colliding, and they can often accommodate tricycles, tandem bikes, or cargo bikes, providing safe, designated spots that protect bikes from damage. These features make the overall parking experience more secure and user-friendly.
For businesses, providing accessible bike racks can lead to a broader customer base. By installing ADA-compliant bike racks, businesses cater to cyclists who rely on accessible solutions, encouraging repeat visits and positive word-of-mouth recommendations. Moreover, inclusive facilities can help create a positive public image.
ADA-compliant bike racks demonstrate a community’s commitment to inclusivity and sustainability. By ensuring bike parking is accessible to all, cities, schools, and organizations encourage more people to choose cycling as a transportation option, reducing car dependency and contributing to a cleaner, greener environment.
To achieve ADA compliance, certain design principles must be followed. Here are some essential features:
ADA-compliant bike racks must have sufficient space around them, allowing cyclists, especially those with disabilities, to maneuver comfortably. Typically, there should be at least 3 feet of clearance on each side of the rack and between each parking space.
Bike racks at varying heights or angled configurations allow easier access for users who may not be able to lift or maneuver a bike into a traditional upright rack. Angled racks reduce strain, and lower racks offer easier reachability.
The aisle between rows of bike racks should be wide enough to accommodate all types of bikes, including adapted cycles, tandem bikes, and recumbent bikes. A recommended aisle width is at least 5 feet, which provides ample space for cyclists to move around.
Accessible racks should allow cyclists to lock their bikes without having to bend down or reach awkwardly. U-shaped racks or racks with loops at varying heights allow for easy attachment points, making it simpler for users to secure their bikes with minimal effort.
Clear signage indicating ADA-compliant bike parking areas ensures these spaces are used correctly. Visible markings can help differentiate accessible bike racks from standard racks and prevent misuse.
ADA-compliant racks come in various designs suited to different environments. Here are a few popular types:

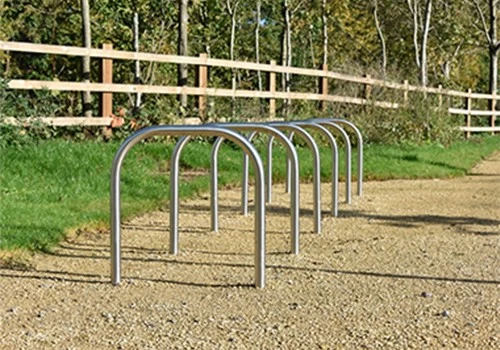

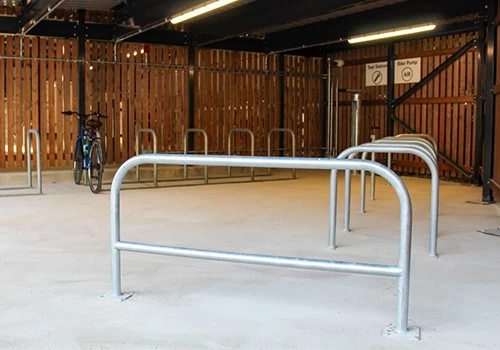

These classic racks offer easy bike support and are ADA-friendly when properly spaced. They’re versatile, allowing for bikes to be secured at multiple points, and they work well in urban and public spaces.
Modular bike racks allow for customization and can be arranged to fit various spaces. Their flexibility in configuration makes them suitable for meeting ADA spacing requirements.
For spaces with limited room, vertical racks can still be ADA-compliant if installed at accessible heights and with sufficient clearance. Wall-mounted racks should be positioned at a reachable height and must not require excessive lifting.
When designing or installing bike parking areas, careful planning is necessary to ensure ADA compliance:
Assessing the site is the first step in planning an ADA-compliant bike parking area. This includes measuring available space, identifying pathways, and planning around any obstacles that could impede access.
Familiarize yourself with ADA regulations and local building codes to ensure full compliance. Requirements may vary depending on the location and type of public space.
Bike racks should be installed on a flat, paved surface with clear, unobstructed paths. This ensures cyclists with limited mobility can access the racks without encountering barriers.
ADA-compliant racks require regular checks to ensure they remain accessible and safe. This includes clearing obstructions, repairing damaged racks, and keeping pathways clear for smooth access.
Adding ADA-compliant bike racks to your facility has long-term benefits. These racks promote an inclusive environment, enhance public image, and help meet regulatory standards. By investing in accessible bike parking, businesses and organizations can attract a broader audience, provide a safer, more comfortable experience for all, and contribute to an eco-conscious community.
ADA-compliant bike racks are not just about meeting regulatory requirements—they’re about fostering inclusivity, safety, and community well-being. The benefits extend beyond compliance, creating an inviting environment for all cyclists and setting a positive example in urban design. With ADA-compliant bike racks, we take a step towards a more inclusive society, where everyone can enjoy the benefits of cycling without barriers.
Investing in ADA-compliant bike racks is an investment in accessibility, inclusivity, and a more sustainable future.
