Specifications
Model Number : PV-SC-001
Type: Bike parking and storage
Color:Yellow,Black,Green,Red,or Customized.
Style : both indoors and outside
Material : carbon steel
Loading: According to customer need
Size :195*23.2*75cm,200.55*23.2*75cm,or Customized.
Finish: hot-galvanized
Specifications
Model Number : PV-0081-01
Type: Bike parking and storage
Color:silver
Style : both indoors and outside
Material : carbon steel
Loading: According to customer need
Size :Height 1463mm, Depth 1114mm
Finish: hot-galvanized
Specifications
Model Number : PV-L
Type: Bike parking and storage
Color:Black
Style : both indoors and outside
Material : carbon steel
Loading: 2-10 bikes (According to customer need)
Size :Height 1463mm, Depth 1114mm
Finish: hot-galvanized
Model No.: PV-H1
Size: w605*D400*H330mm
Specification: Round tube:¢16*1.2mm
Finish: Power coated
Net Weight: 1.6 kgs
Packing size:6pcs/ctn
MOQ: 100pcs
Material : carbon steel/stainless steel
Loading: according customer space size,we can design according the size
Size : W1977*D1130(depend on your parking space)*H2500mm
Finish: Powder coated ,hot-galvanized/electric polish
Packing size :2000*2000*2500mm(40 parking space )
Powder coated ,hot-galvanized/electric polish
Product number:PV-0046-01
Material:carbon steel
Specification:10.2*59*28CM or Customized.
MOQ:100PCS
Port:Shanghai
Trademark:PV
Model Number : PV-0081-01
Type: Outdoor Bike Parking Rack
Style : both indoors and outside
Material : carbon steel
Loading: 2-10 bikes (According to customer need)
Size :170.5*116*148CM
Finish: hot-galvanized
Model Number : PV-0055-01
Type: compact flat pack /slot
Color:black / silver /yellow/optional
Style :Outdoor/indoor
Material : carbon steel/ stainless steel
Capacity : park 6 bikes
Size : L1400*W1054*H840mm
Net weight :38KG
Finish: powder coating / hot galvanized /elctropolishing
Packing size :1490*860*160mm 1pcs/ctn
Product Name: Multi-Capacity Horizontal Two Tier Bike Parking Rack
Material: Carbon Steel
Finish: Powder coated
Post: 80mm * 80mm thickness: 3mm
Steel plate: thickness: 2mm
Dimension: 1325*1890*1830mm
Weight: 370 kg/set
Model: HJ-000148-00-01
Material: stainless steel 304
Pipe: 50 mm* 2.5 mm
Size: 900*700 mm(L*W)
Surface treatment: polishing
A new way to store bicycles. the project responds to the increased number of cyclists in cities around the world - a movement that has only grown during the on going sepan demic. responding to the need to park and store more bikes in public and private spaces than ever before, the design team devised a simple solution that can be installed indoors: at home or as communal parking; as well as outdoors: in public spaces, parks, or in buildings.

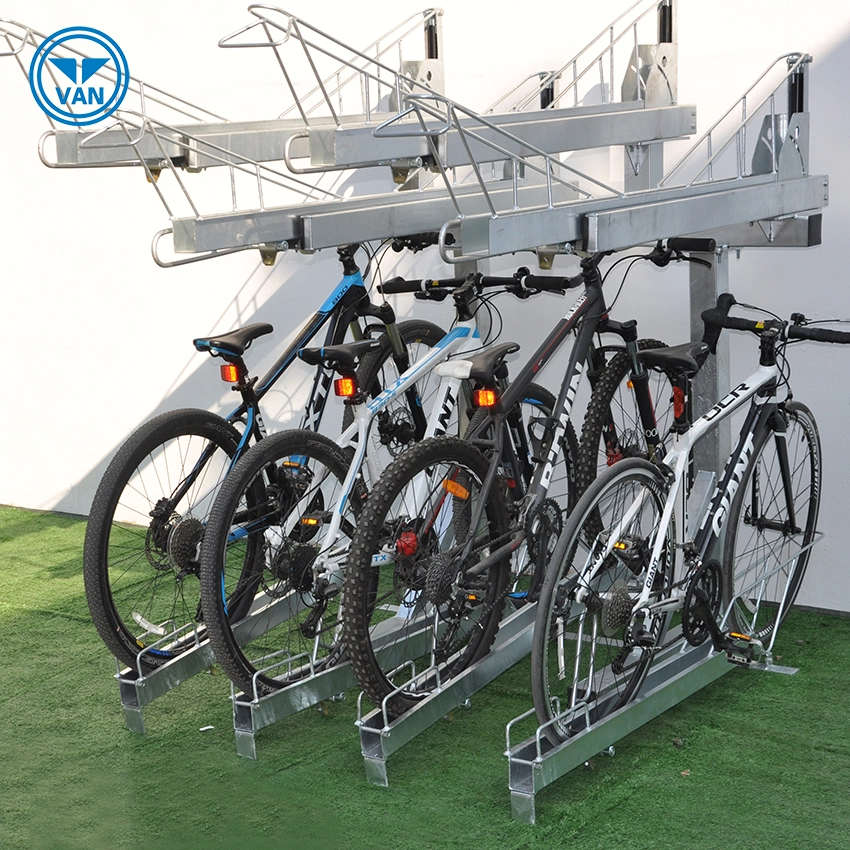

photo from: double tier bike rack | chinabikerack
Each 'bici' frame consists of a drive-up rail with a specifically developed cut-out shape for the bicycle wheel to slide in. The conic ends of the opening ensure that all types of wheels can securely fit and are held tightly, from the very slim profile of a racing bicycle to the big tire of a cross-country bike. round holes at the frame’s sides allow the vehicle to be secured to the frame at various points.
Made from painted steel, the custom-designed frame comes in a variety of colors and can be easily installed. two versions with different inclinations are available to suit any spatial condition: bici high and bici low. arranged along a wall as a series of alternating frames, the combination of varied angles allows for efficient storage as the bicycles start to overlap with the handlebars.

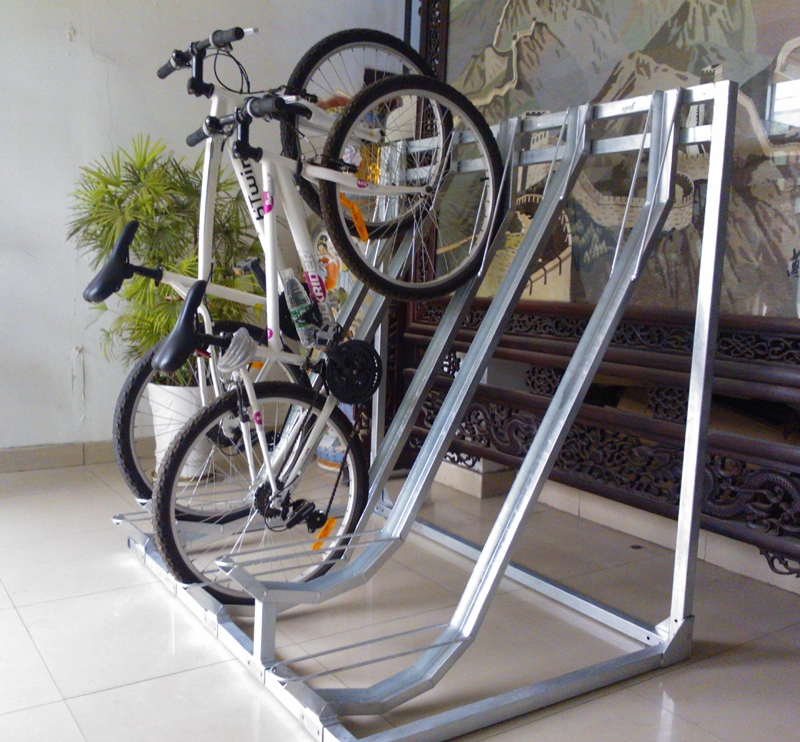

photo from: Semi-vertical cycling bike parking | chinabikerack
The design team says that the frames can be easily installed on any steady wall and floor of brick, block, concrete, stone, or drywall. firstly, the head of the frame gets fixed in position with the attached pin fitted into a drilled hole in the wall. in a second step, the foot of the frame is set on the floor and fixed tightly with screws. see other projects by zeller & moye on designboom here.
