Specifications
Model Number : PV-SC-001
Type: Bike parking and storage
Color:Yellow,Black,Green,Red,or Customized.
Style : both indoors and outside
Material : carbon steel
Loading: According to customer need
Size :195*23.2*75cm,200.55*23.2*75cm,or Customized.
Finish: hot-galvanized
Specifications
Model Number : PV-0081-01
Type: Bike parking and storage
Color:silver
Style : both indoors and outside
Material : carbon steel
Loading: According to customer need
Size :Height 1463mm, Depth 1114mm
Finish: hot-galvanized
Model Number : PV-0081-01
Type: Bike parking and storage
Color:Black
Style : both indoors and outside
Material : carbon steel
Loading: 2-10 bikes (According to customer need)
Size :Height 1463mm, Depth 1114mm
Finish: hot-galvanized
Model No.: PV-H1
Size: w605*D400*H330mm
Specification: Round tube:￠16*1.2mm
Finish: Power coated
Net Weight: 1.6 kgs
Packing size:6pcs/ctn
MOQ: 100pcs
Model Number : PV-0024-01
Material : carbon steel/stainless steel
Loading: according customer space size,we can design according the size
Size : W1977*D1130(depend on your parking space)*H2500mm
Finish: Powder coated ,hot-galvanized/electric polish
Packing size :2000*2000*2500mm(40 parking space )
Powder coated ,hot-galvanized/electric polish
Product number:PV-0046-01
Material:carbon steel
Specification:10.2*59*28CM or Customized.
MOQ:100PCS
Port:Shanghai
Trademark:PV
Model Number : PV-0081-01
Type: Outdoor Bike Parking Rack
Style : both indoors and outside
Material : carbon steel
Loading: 2-10 bikes (According to customer need)
Size :170.5*116*148CM
Finish: hot-galvanized
Model Number : PV-0055-01
Type: compact flat pack /slot
Color:black / silver /yellow/optional
Style :Outdoor/indoor
Material : carbon steel/ stainless steel
Capacity : park 6 bikes
Size : L1400*W1054*H840mm
Net weight :38KG
Finish: powder coating / hot galvanized /elctropolishing
Packing size :1490*860*160mm 1pcs/ctn
Product Name： Multi-Capacity Horizontal Two Tier Bike Parking Rack
Material： Carbon Steel
Finish： Powder coated
Post： 80mm * 80mm thickness: 3mm
Steel plate： thickness: 2mm
Dimension： 1325*1890*1830mm
Weight： 370 kg/set
Model: PV-0067-01
Material: stainless steel 304
Pipe: 50 mm* 2.5 mm
Size: 900*700 mm(L*W)
Surface treatment: polishing

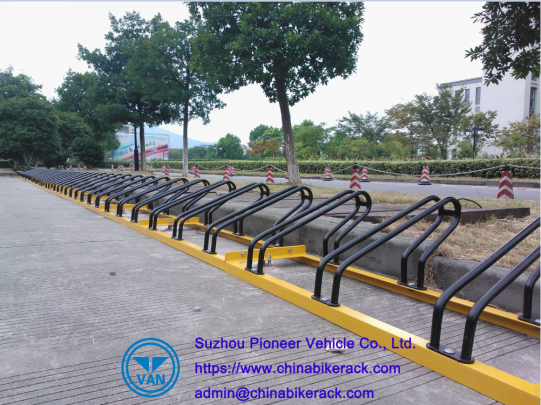

Bicycle parking racks it is convenient for citizens to park bicycles and electric vehicles in an orderly manner, prevent theft and loss, beautify the city aspect and improve the quality of the city. They were well received by the public.
【Bike carrier specifications】
Normal bicycle size: 1200 * 520 * 330mm
Card slot spacing: 80 mm
Normal size of parked electric vehicles: 1200 * 440 * 350mm
Card slot spacing: 120-150mm
【 Features】
1. Using SUS304 stainless steel material, it won't rust for long-term outdoor use. This card parking stand is different from the original conventional style design.
2. Adopting one-to-one parking design, the card slot can be customized top or bottom or can be customized with different spacing. The front elbow opening is convenient for propulsion and positioning of the wheels and parking is convenient, easier and more stable.
3. The base is made of sturdy flat iron. The advanced argon arc welding technology makes the base and slot fully combined.
【 Application】
Bicycle parking racks are widely used in non-automotive parking lots on both sides of municipal roads, communities with non-automotive parking lots, factories or units with non-automotive parking areas, shopping malls and public facilities with shelters or non-motor vehicle parking spots. , etc.

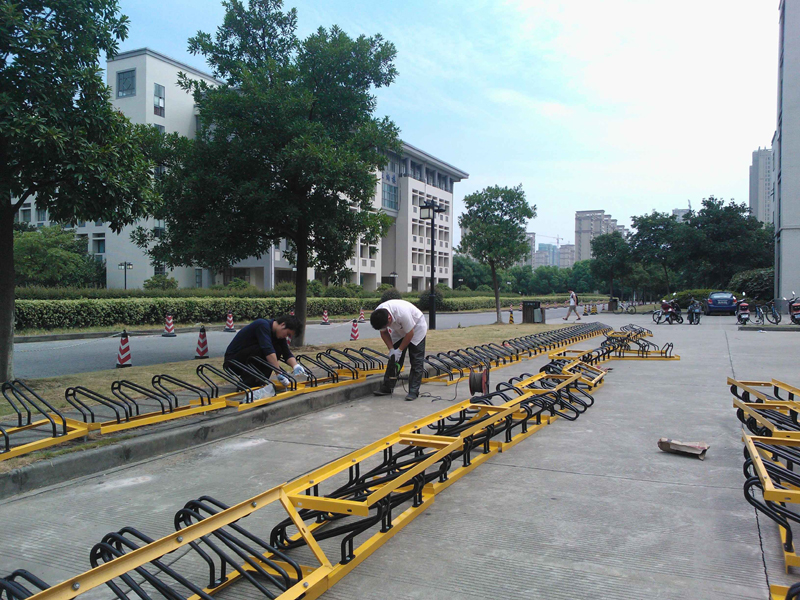

【 Installation notes】
It just needs to be drilled into the hard ground with a hammer drill and then fixed with an expansion screw for use. The combination of units can be installed freely according to the site.
No kind of bicycle racks or ODM / OEM are welcome inquiry. Thank you for your visiting.
