Specifications
Model Number : PV-SC-001
Type: Bike parking and storage
Color:Yellow,Black,Green,Red,or Customized.
Style : both indoors and outside
Material : carbon steel
Loading: According to customer need
Size :195*23.2*75cm,200.55*23.2*75cm,or Customized.
Finish: hot-galvanized
Specifications
Model Number : PV-0081-01
Type: Bike parking and storage
Color:silver
Style : both indoors and outside
Material : carbon steel
Loading: According to customer need
Size :Height 1463mm, Depth 1114mm
Finish: hot-galvanized
Model Number : PV-0081-01
Type: Bike parking and storage
Color:Black
Style : both indoors and outside
Material : carbon steel
Loading: 2-10 bikes (According to customer need)
Size :Height 1463mm, Depth 1114mm
Finish: hot-galvanized
Model No.: PV-H1
Size: w605*D400*H330mm
Specification: Round tube:¢16*1.2mm
Finish: Power coated
Net Weight: 1.6 kgs
Packing size:6pcs/ctn
MOQ: 100pcs
Model Number : PV-0024-01
Material : carbon steel/stainless steel
Loading: according customer space size,we can design according the size
Size : W1977*D1130(depend on your parking space)*H2500mm
Finish: Powder coated ,hot-galvanized/electric polish
Packing size :2000*2000*2500mm(40 parking space )
Powder coated ,hot-galvanized/electric polish
Product number:PV-0046-01
Material:carbon steel
Specification:10.2*59*28CM or Customized.
MOQ:100PCS
Port:Shanghai
Trademark:PV
Model Number : PV-0081-01
Type: Outdoor Bike Parking Rack
Style : both indoors and outside
Material : carbon steel
Loading: 2-10 bikes (According to customer need)
Size :170.5*116*148CM
Finish: hot-galvanized
Model Number : PV-0055-01
Type: compact flat pack /slot
Color:black / silver /yellow/optional
Style :Outdoor/indoor
Material : carbon steel/ stainless steel
Capacity : park 6 bikes
Size : L1400*W1054*H840mm
Net weight :38KG
Finish: powder coating / hot galvanized /elctropolishing
Packing size :1490*860*160mm 1pcs/ctn
Product Name: Multi-Capacity Horizontal Two Tier Bike Parking Rack
Material: Carbon Steel
Finish: Powder coated
Post: 80mm * 80mm thickness: 3mm
Steel plate: thickness: 2mm
Dimension: 1325*1890*1830mm
Weight: 370 kg/set
Model: PV-0067-01
Material: stainless steel 304
Pipe: 50 mm* 2.5 mm
Size: 900*700 mm(L*W)
Surface treatment: polishing
Some studies have shown that investment in public facilities for safe cycling has an important role to play in transforming cities, enabling urban spaces to serve a more humane, healthier quality of life.Cities in the Netherlands and northern European countries have incorporated cycling into their daily lives, but many people around the world still use vehicles such as cars, buses and subways for their daily commutes and they are still looking for a mode of transport that reduces congestion and increases cycling.
Research has shown that investing in non-motorized forms of transport can reduce congestion, improve air quality and the physical and mental health of residents, as well as boost local trade and brand awareness, thanks to cyclists being more focused on local businesses and taking up less space.
Of course, it is necessary to provide suitable parking places near or along bike paths.A typical bike parking space is an enclosed space, usually with some monitoring and additional infrastructure, but paracycles are also structures that can safely hold and lock the bike.They can also be combined with some of the city's infrastructure such as benches, advertising boards, street lights and information signs.

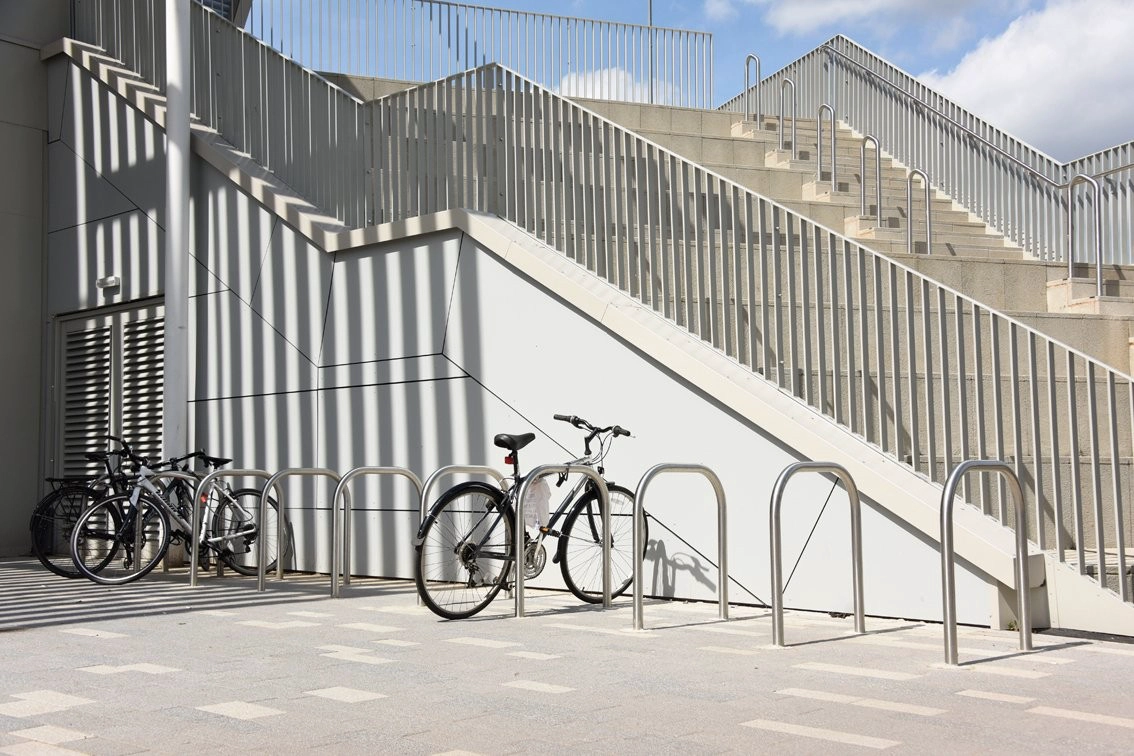

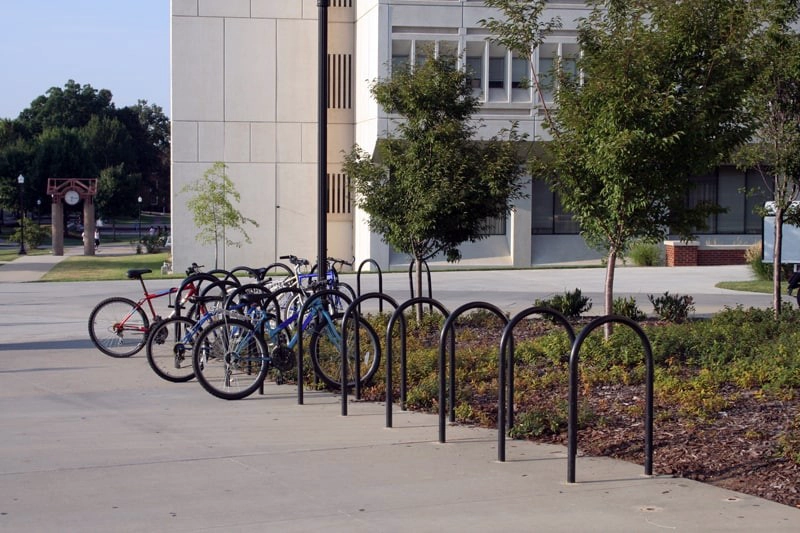

Most importantly, bike stands should be placed in a position that is convenient for both pedestrians and cyclists.It is made of a sturdy material that is firmly fixed to the ground, and its geometry ensures that the rim of the bike can be fixed to the frame to prevent theft.A common mistake in the deployment of cycling facilities is not to take into account actual cycling routes or routes where potential riders are located, such as areas on ramps, or preset routes along bike paths.This is all about making it easier for visitors to find cycling facilities rather than extending the route.
But what are the main factors to consider when installing a bike stand?
1, The location shoule be obvious but does not interruptting the pedestrian flow
The important part of the successful establishment of the facility was that the bike stands were placed in the right place and had good visibility.This allows pedestrians to monitor them spontaneously, and cyclists to find out where they are.These should be as close to the cyclist's destination as possible, preferably near the entrance to the building.It is important not to obstruct public sidewalks, entrances and exits, especially emergency access or low level exit and exit guidance facilities.
2, Keep a certain distance between the bike racks
For the best use experience, it is necessary to keep a minimum of 80cm between the brackets and allow 2 bikes to park each bracket.
3, Keep some distance from the surrounding facilities
Make sure there is enough space around the bike support for the bike to pass.Keep at least 50 cm away from all walls, trees or other objects.
4, The material used to fix the bicycle
Consider using materials that are strong and durable enough to withstand frequent use and harsh environmental conditions such as sun exposure and corrosion.The structure is usually made of aluminum or galvanized steel, but some have added a layer of rubber to avoid scratching the bike.The ground needs a concrete slab to hold the support structure in place.For this reason, the ground must be flat, with no protrusions or cavities, and the height difference in the span of the bracket must not exceed 5%.
5, Consider the using when the bike stands not be used
It is also interesting to consider the use of bike stands when they are vacant.It will be pleasing to imagine it as a slender structure when there is no bicycle to park.Some cities have created bike stand design models that talk to other neighborhood facilities.
6, Allows multi-point bracing and locking
Another focus in considering the bikes being put on the market is to look at the size of the bike bracket structure to allow for multiple points of support and locking.Some manuals suggest that the ideal way is to fix the two parts of the bike.These areas are generally considered to be no more than 80 centimetres above the ground.The length of the different scaffolds varied even more, in some cases up to 80 cm.
Check more bike parking solutions at www.chinabikerack.com!
